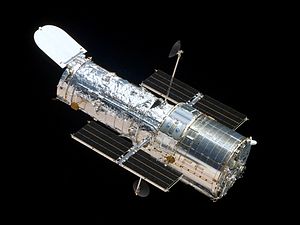

Hubble Space Telescope
|Organization||NASA / ESA / STScI|
|Launch date||April 24, 1990, 8:33:51 am EDT|
|Launch vehicle||Space Shuttle Discovery (STS-31)|
|Mission length||23 years, 3 months, and 26 days elapsed|
|Mass||11,110 kg (24,500 lb)|
|Length||13.2 m (43 ft)|
|Type of orbit||Near-circular low Earth orbit|
|Orbit height||559 km (347 mi)|
|Orbit period||96–97 minutes (14–15 periods per day)|
|Orbit velocity||7,500 m/s (25,000 ft/s)|
|Acceleration due to gravity||8.169 m/s2 (26.80 ft/s2)|
|Location||Low Earth orbit|
|Telescope style||Ritchey–Chrétien reflector|
|Wavelength||visible light, ultraviolet, near-infrared|
|Diameter||2.4 m (7.9 ft)|
|Collecting area||4.5 m2 (48 sq ft)|
|Focal length||57.6 m (189 ft)|
|ACS||optical survey camera
|WFC3||wide field optical camera|
|FGS||three fine guidance sensors|
The Hubble Space Telescope (HST) is a space telescope that was carried into orbit by a Space Shuttle in 1990 and remains in operation. A 2.4-meter (7.9 ft) aperture telescope in low Earth orbit, Hubble's four main instruments observe in the near ultraviolet, visible, and near infrared. The telescope is named after the astronomer Edwin Hubble.
Hubble's orbit outside the distortion of Earth's atmosphere allows it to take extremely high-resolution images with almost no background light. Hubble's Deep Field has recorded some of the most detailed visible-light images ever, allowing a deep view into space and time. Many Hubble observations have led to breakthroughs in astrophysics, such as accurately determining the rate of expansion of the universe.
Although not the first space telescope, Hubble is one of the largest and most versatile, and is well known as both a vital research tool and a public relations boon for astronomy. The HST was built by the United States space agency NASA, with contributions from the European Space Agency, and is operated by the Space Telescope Science Institute. The HST is one of NASA's Great Observatories, along with the Compton Gamma Ray Observatory, the Chandra X-ray Observatory, and the Spitzer Space Telescope.
Space telescopes were proposed as early as 1923. Hubble was funded in the 1970s, with a proposed launch in 1983, but the project was beset by technical delays, budget problems, and the Challenger disaster. When finally launched in 1990, Hubble's main mirror was found to have been ground incorrectly, compromising the telescope's capabilities. The optics were corrected to their intended quality by a servicing mission in 1993.
Hubble is the only telescope designed to be serviced in space by astronauts. Between 1993 and 2002, four Space Shuttle missions repaired, upgraded, and replaced systems on the telescope; a fifth mission was canceled on safety grounds following the Columbia disaster. However, after spirited public discussion, NASA administrator Mike Griffin approved one final servicing mission, completed in 2009. The telescope is now expected to function until at least 2014, and possibly 2020. Its scientific successor, the James Webb Space Telescope (JWST), is currently scheduled to be launched in 2018.
- 1 Conception, design and aims
- 2 Flawed mirror
- 3 Servicing missions and new instruments
- 4 Scientific results
- 5 Usage
- 6 Hubble data
- 7 Outreach activities
- 8 Future
- 9 List of Hubble instruments
- 10 See also
- 11 Notes
- 12 References
- 13 Further reading
- 14 External links
Conception, design and aims[edit source | edit]
Proposals and precursors[edit source | edit]
In 1923, Hermann Oberth—considered a father of modern rocketry, along with Robert H. Goddard and Konstantin Tsiolkovsky—published Die Rakete zu den Planetenräumen ("The Rocket into Planetary Space"), which mentioned how a telescope could be propelled into Earth orbit by a rocket.
The history of the Hubble Space Telescope can be traced back as far as 1946, to the astronomer Lyman Spitzer's paper "Astronomical advantages of an extraterrestrial observatory". In it, he discussed the two main advantages that a space-based observatory would have over ground-based telescopes. First, the angular resolution (the smallest separation at which objects can be clearly distinguished) would be limited only by diffraction, rather than by the turbulence in the atmosphere, which causes stars to twinkle, known to astronomers as seeing. At that time ground-based telescopes were limited to resolutions of 0.5–1.0 arcseconds, compared to a theoretical diffraction-limited resolution of about 0.05 arcsec for a telescope with a mirror 2.5 m in diameter. Second, a space-based telescope could observe infrared and ultraviolet light, which are strongly absorbed by the atmosphere.
Spitzer devoted much of his career to pushing for the development of a space telescope. In 1962, a report by the US National Academy of Sciences recommended the development of a space telescope as part of the space program, and in 1965 Spitzer was appointed as head of a committee given the task of defining scientific objectives for a large space telescope.
Space-based astronomy had begun on a very small scale following World War II, as scientists made use of developments that had taken place in rocket technology. The first ultraviolet spectrum of the Sun was obtained in 1946, and the National Aeronautics and Space Administration (NASA) launched the Orbiting Solar Observatory (OSO) to obtain UV, X-ray, and gamma-ray spectra in 1962. An orbiting solar telescope was launched in 1962 by the United Kingdom as part of the Ariel space program, and in 1966 NASA launched the first Orbiting Astronomical Observatory (OAO) mission. OAO-1's battery failed after three days, terminating the mission. It was followed by OAO-2, which carried out ultraviolet observations of stars and galaxies from its launch in 1968 until 1972, well beyond its original planned lifetime of one year.
The OSO and OAO missions demonstrated the important role space-based observations could play in astronomy, and in 1968, NASA developed firm plans for a space-based reflecting telescope with a mirror 3 m in diameter, known provisionally as the Large Orbiting Telescope or Large Space Telescope (LST), with a launch slated for 1979. These plans emphasized the need for manned maintenance missions to the telescope to ensure such a costly program had a lengthy working life, and the concurrent development of plans for the reusable space shuttle indicated that the technology to allow this was soon to become available.
Quest for funding[edit source | edit]
The continuing success of the OAO program encouraged increasingly strong consensus within the astronomical community that the LST should be a major goal. In 1970, NASA established two committees, one to plan the engineering side of the space telescope project, and the other to determine the scientific goals of the mission. Once these had been established, the next hurdle for NASA was to obtain funding for the instrument, which would be far more costly than any Earth-based telescope. The U.S. Congress questioned many aspects of the proposed budget for the telescope and forced cuts in the budget for the planning stages, which at the time consisted of very detailed studies of potential instruments and hardware for the telescope. In 1974, public spending cuts led to Congress deleting all funding for the telescope project.
In response to this, a nationwide lobbying effort was coordinated among astronomers. Many astronomers met congressmen and senators in person, and large scale letter-writing campaigns were organized. The National Academy of Sciences published a report emphasizing the need for a space telescope, and eventually the Senate agreed to half of the budget that had originally been approved by Congress.
The funding issues led to something of a reduction in the scale of the project, with the proposed mirror diameter reduced from 3 m to 2.4 m, both to cut costs  and to allow a more compact and effective configuration for the telescope hardware. A proposed precursor 1.5 m space telescope to test the systems to be used on the main satellite was dropped, and budgetary concerns also prompted collaboration with the European Space Agency. ESA agreed to provide funding and supply one of the first generation instruments for the telescope, as well as the solar cells that would power it, and staff to work on the telescope in the United States, in return for European astronomers being guaranteed at least 15% of the observing time on the telescope. Congress eventually approved funding of US$36,000,000 for 1978, and the design of the LST began in earnest, aiming for a launch date of 1983. In 1983 the telescope was named after Edwin Hubble, who made one of the greatest scientific breakthroughs of the 20th century when he discovered that the universe is expanding.
Construction and engineering[edit source | edit]
Once the Space Telescope project had been given the go-ahead, work on the program was divided among many institutions. Marshall Space Flight Center (MSFC) was given responsibility for the design, development, and construction of the telescope, while Goddard Space Flight Center was given overall control of the scientific instruments and ground-control center for the mission. MSFC commissioned the optics company Perkin-Elmer to design and build the Optical Telescope Assembly (OTA) and Fine Guidance Sensors for the space telescope. Lockheed was commissioned to construct and integrate the spacecraft in which the telescope would be housed.
Optical Telescope Assembly (OTA)[edit source | edit]
Optically, the HST is a Cassegrain reflector of Ritchey–Chrétien design, as are most large professional telescopes. This design, with two hyperbolic mirrors, is known for good imaging performance over a wide field of view, with the disadvantage that the mirrors have shapes that are hard to fabricate and test. The mirror and optical systems of the telescope determine the final performance, and they were designed to exacting specifications. Optical telescopes typically have mirrors polished to an accuracy of about a tenth of the wavelength of visible light, but the Space Telescope was to be used for observations from the visible through the ultraviolet (shorter wavelengths) and was specified to be diffraction limited to take full advantage of the space environment. Therefore its mirror needed to be polished to an accuracy of 10 nanometers, or about 1/65 of the wavelength of red light. On the long wavelength end, the OTA was not designed with optimum IR performance in mind—for example, the mirrors are kept at stable (and warm, about 15 °C) temperatures by heaters. This limits Hubble's performance as an infrared telescope.
Perkin-Elmer intended to use custom-built and extremely sophisticated computer-controlled polishing machines to grind the mirror to the required shape. However, in case their cutting-edge technology ran into difficulties, NASA demanded that PE sub-contract to Kodak to construct a back-up mirror using traditional mirror-polishing techniques. (The team of Kodak and Itek also bid on the original mirror polishing work. Their bid called for the two companies to double-check each other's work, which would have almost certainly caught the polishing error that later caused such problems.) The Kodak mirror is now on permanent display at the National Air and Space Museum. An Itek mirror built as part of the effort is now used in the 2.4 m telescope at the Magdalena Ridge Observatory.
Construction of the Perkin-Elmer mirror began in 1979, starting with a blank manufactured by Corning from their ultra-low expansion glass. To keep the mirror's weight to a minimum it consisted of inch-thick top and bottom plates sandwiching a honeycomb lattice. Perkin-Elmer simulated microgravity by supporting the mirror on both sides with 138 rods that exerted varying amounts of force. This ensured that the mirror's final shape would be correct and to specification when finally deployed. Mirror polishing continued until May 1981. NASA reports at the time questioned Perkin-Elmer's managerial structure, and the polishing began to slip behind schedule and over budget. To save money, NASA halted work on the back-up mirror and put the launch date of the telescope back to October 1984. The mirror was completed by the end of 1981; it was washed using 2,400 gallons (9,100 L) of hot, deionized water and then received a reflective coating of 65 nm-thick aluminum and a protective coating of 25 nm-thick magnesium fluoride.
Doubts continued to be expressed about Perkin-Elmer's competence on a project of this importance, as their budget and timescale for producing the rest of the OTA continued to inflate. In response to a schedule described as "unsettled and changing daily", NASA postponed the launch date of the telescope until April 1985. Perkin-Elmer's schedules continued to slip at a rate of about one month per quarter, and at times delays reached one day for each day of work. NASA was forced to postpone the launch date until March and then September 1986. By this time, the total project budget had risen to US$1.175 billion.
Spacecraft systems[edit source | edit]
The spacecraft in which the telescope and instruments were to be housed was another major engineering challenge. It would have to withstand frequent passages from direct sunlight into the darkness of Earth's shadow, which would cause major changes in temperature, while being stable enough to allow extremely accurate pointing of the telescope. A shroud of multi-layer insulation keeps the temperature within the telescope stable, and surrounds a light aluminum shell in which the telescope and instruments sit. Within the shell, a graphite-epoxy frame keeps the working parts of the telescope firmly aligned. Because graphite composites are hygroscopic, there was a risk that water vapor absorbed by the truss while in Lockheed's clean room would later be expressed in the vacuum of space; the telescope's instruments would be covered in ice. To reduce that risk, a nitrogen gas purge was performed before launching the telescope into space.
While construction of the spacecraft in which the telescope and instruments would be housed proceeded somewhat more smoothly than the construction of the OTA, Lockheed still experienced some budget and schedule slippage, and by the summer of 1985, construction of the spacecraft was 30% over budget and three months behind schedule. An MSFC report said that Lockheed tended to rely on NASA directions rather than take their own initiative in the construction.
Initial instruments[edit source | edit]
When launched, the HST carried five scientific instruments: the Wide Field and Planetary Camera (WF/PC), Goddard High Resolution Spectrograph (GHRS), High Speed Photometer (HSP), Faint Object Camera (FOC) and the Faint Object Spectrograph (FOS). WF/PC was a high-resolution imaging device primarily intended for optical observations. It was built by NASA's Jet Propulsion Laboratory, and incorporated a set of 48 filters isolating spectral lines of particular astrophysical interest. The instrument contained eight charge-coupled device (CCD) chips divided between two cameras, each using four CCDs. Each CCD has a resolution of 0.64 megapixels. The "wide field camera" (WFC) covered a large angular field at the expense of resolution, while the "planetary camera" (PC) took images at a longer effective focal length than the WF chips, giving it a greater magnification.
The GHRS was a spectrograph designed to operate in the ultraviolet. It was built by the Goddard Space Flight Center and could achieve a spectral resolution of 90,000. Also optimized for ultraviolet observations were the FOC and FOS, which were capable of the highest spatial resolution of any instruments on Hubble. Rather than CCDs these three instruments used photon-counting digicons as their detectors. The FOC was constructed by ESA, while the University of California, San Diego, and Martin Marietta Corporation built the FOS.
The final instrument was the HSP, designed and built at the University of Wisconsin–Madison. It was optimized for visible and ultraviolet light observations of variable stars and other astronomical objects varying in brightness. It could take up to 100,000 measurements per second with a photometric accuracy of about 2% or better.
HST's guidance system can also be used as a scientific instrument. Its three Fine Guidance Sensors (FGS) are primarily used to keep the telescope accurately pointed during an observation, but can also be used to carry out extremely accurate astrometry; measurements accurate to within 0.0003 arcseconds have been achieved.
Ground support[edit source | edit]
The Space Telescope Science Institute (STScI) is responsible for the scientific operation of the telescope and the delivery of data products to astronomers. STScI is operated by the Association of Universities for Research in Astronomy (AURA) and is physically located in Baltimore, Maryland on the Homewood campus of Johns Hopkins University, one of the 39 US universities and seven international affiliates that make up the AURA consortium. STScI was established in 1981  after something of a power struggle between NASA and the scientific community at large. NASA had wanted to keep this function in-house, but scientists wanted it to be based in an academic establishment. The Space Telescope European Coordinating Facility (ST-ECF), established at Garching bei München near Munich in 1984, provides similar support for European astronomers.
One rather complex task that falls to STScI is scheduling observations for the telescope. Hubble is in a low-Earth orbit to enable servicing missions, but this means that most astronomical targets are occulted by the Earth for slightly less than half of each orbit. Observations cannot take place when the telescope passes through the South Atlantic Anomaly due to elevated radiation levels, and there are also sizable exclusion zones around the Sun (precluding observations of Mercury), Moon and Earth. The solar avoidance angle is about 50°, to keep sunlight from illuminating any part of the OTA. Earth and Moon avoidance keeps bright light out of the FGSs, and keeps scattered light from entering the instruments. If the FGSs are turned off, however, the Moon and Earth can be observed. Earth observations were used very early in the program to generate flat-fields for the WFPC1 instrument. There is a so-called continuous viewing zone (CVZ), at roughly 90° to the plane of Hubble's orbit, in which targets are not occulted for long periods. Due to the precession of the orbit, the location of the CVZ moves slowly over a period of eight weeks. Because the limb of the Earth is always within about 30° of regions within the CVZ, the brightness of scattered earthshine may be elevated for long periods during CVZ observations.
Hubble orbits in the upper atmosphere at an altitude of approximately 559 km (347 mi). The position along its orbit changes over time in a way that is not accurately predictable. The density of the upper atmosphere varies according to many factors, and this means that Hubble's predicted position for six weeks' time could be in error by up to 4,000 km. Observation schedules are typically finalized only a few days in advance, as a longer lead time would mean there was a chance that the target would be unobservable by the time it was due to be observed.
Engineering support for HST is provided by NASA and contractor personnel at the Goddard Space Flight Center in Greenbelt, Maryland, 48 km south of the STScI. Hubble's operation is monitored 24 hours per day by four teams of flight controllers who make up Hubble's Flight Operations Team.
Challenger disaster, delays, and eventual launch[edit source | edit]
By early 1986, the planned launch date of October that year looked feasible, but the Challenger accident brought the U.S. space program to a halt, grounding the space shuttle fleet and forcing the launch of Hubble to be postponed for several years. The telescope had to be kept in a clean room, powered up and purged with nitrogen, until a launch could be rescheduled. This costly situation (about $6 million per month) pushed the overall costs of the project even higher. This delay did allow time for engineers to perform extensive tests, swap out a possibly failure-prone battery, and make other improvements. Furthermore, the ground software needed to control Hubble was not ready in 1986, and in fact was barely ready by the 1990 launch.
Eventually, following the resumption of shuttle flights in 1988, the launch of the telescope was scheduled for 1990. On April 24, 1990, shuttle mission STS-31 saw Discovery launch the telescope successfully into its planned orbit.
From its original total cost estimate of about US$400 million, the telescope had by now cost over $2.5 billion to construct. Hubble's cumulative costs up to this day are estimated to be several times higher still, roughly US$10 billion as of 2010.
Flawed mirror[edit source | edit]
Within weeks of the launch of the telescope, the returned images indicated a serious problem with the optical system. Although the first images appeared to be sharper than those of ground-based telescopes, Hubble failed to achieve a final sharp focus and the best image quality obtained was drastically lower than expected. Images of point sources spread out over a radius of more than one arcsecond, instead of having a point spread function (PSF) concentrated within a circle 0.1 arcsec in diameter as had been specified in the design criteria.
Analysis of the flawed images showed that the cause of the problem was that the primary mirror had been ground to the wrong shape. Although it was probably the most precisely figured mirror ever made, with variations from the prescribed curve of only 10 nanometers, at the perimeter it was too flat by about 2,200 nanometers (2.2 micrometres). This difference was catastrophic, introducing severe spherical aberration, a flaw in which light reflecting off the edge of a mirror focuses on a different point from the light reflecting off its center.
The effect of the mirror flaw on scientific observations depended on the particular observation—the core of the aberrated PSF was sharp enough to permit high-resolution observations of bright objects, and spectroscopy was largely unaffected. However, the loss of light to the large, out of focus halo severely reduced the usefulness of the telescope for faint objects or high-contrast imaging. This meant that nearly all of the cosmological programs were essentially impossible, since they required observation of exceptionally faint objects. NASA and the telescope became the butt of many jokes, and the project was popularly regarded as a white elephant. For instance, in the 1991 comedy The Naked Gun 2½: The Smell of Fear, the Hubble was pictured with the Titanic, the Hindenburg, and the Edsel. Nonetheless, during the first three years of the Hubble mission, before the optical corrections, the telescope still carried out a large number of productive observations of less demanding targets. The error was well characterized and stable, enabling astronomers to optimize the results obtained using sophisticated image processing techniques such as deconvolution.
Origin of the problem[edit source | edit]
A commission headed by Lew Allen, director of the Jet Propulsion Laboratory, was established to determine how the error could have arisen. The Allen Commission found that the main null corrector, a testing device used to achieve a properly shaped non-spherical mirror, had been incorrectly assembled—one lens was out of position by 1.3 mm. During the initial grinding and polishing of the mirror, Perkin-Elmer analyzed its surface with two conventional null correctors. However, for the final manufacturing step (figuring), they switched to a custom-built null corrector, designed explicitly to meet very strict tolerances. Ironically, this device was assembled incorrectly, resulting in an extremely precise (but wrong) shape for the mirror. There was one final opportunity to catch the error, since a few of the final tests needed to use conventional null correctors for various technical reasons. These tests correctly indicated spherical aberration. However, the company ignored these results, as it believed they were less accurate than the primary device which reported that the mirror was perfectly figured.
The commission blamed the failings primarily on Perkin-Elmer. Relations between NASA and the optics company had been severely strained during the telescope construction, due to frequent schedule slippage and cost overruns. NASA found that Perkin-Elmer did not review or supervise the mirror construction adequately, did not assign its best optical scientists to the project (as it had for the prototype), and in particular did not involve the optical designers in the construction and verification of the mirror. While the commission heavily criticized Perkin-Elmer for these managerial failings, NASA was also criticized for not picking up on the quality control shortcomings, such as relying totally on test results from a single instrument.
Design of a solution[edit source | edit]
The design of the telescope had always incorporated servicing missions, and astronomers immediately began to seek potential solutions to the problem that could be applied at the first servicing mission, scheduled for 1993. While Kodak had ground a back-up mirror for Hubble, it would have been impossible to replace the mirror in orbit, and too expensive and time-consuming to bring the telescope back to Earth for a refit. Instead, the fact that the mirror had been ground so precisely to the wrong shape led to the design of new optical components with exactly the same error but in the opposite sense, to be added to the telescope at the servicing mission, effectively acting as "spectacles" to correct the spherical aberration.
The first step was a precise characterization of the error in the main mirror. Working backwards from images of point sources, astronomers determined that the conic constant of the mirror as built was −1.01390±0.0002, instead of the intended −1.00230. The same number was also derived by analyzing the null corrector used by Perkin-Elmer to figure the mirror, as well as by analyzing interferograms obtained during ground testing of the mirror.
Because of the way the HST's instruments were designed, two different sets of correctors were required. The design of the Wide Field and Planetary Camera 2, already planned to replace the existing WF/PC, included relay mirrors to direct light onto the four separate Charge-coupled device (CCD) chips making up its two cameras. An inverse error built into their surfaces could completely cancel the aberration of the primary. However, the other instruments lacked any intermediate surfaces that could be figured in this way, and so required an external correction device.
The Corrective Optics Space Telescope Axial Replacement (COSTAR) system was designed to correct the spherical aberration for light focused at the FOC, FOS, and GHRS. It consists of two mirrors in the light path with one ground to correct the aberration. To fit the COSTAR system onto the telescope, one of the other instruments had to be removed, and astronomers selected the High Speed Photometer to be sacrificed. By 2002, all of the original instruments requiring COSTAR had been replaced by instruments with their own corrective optics. COSTAR was removed and returned to Earth in 2009 where it is exhibited at the National Air and Space Museum. The area previously used by COSTAR is now occupied by the Cosmic Origins Spectrograph.
Servicing missions and new instruments[edit source | edit]
Hubble was designed to accommodate regular servicing and equipment upgrades. Five servicing missions (SM 1, 2, 3A, 3B, and 4) were flown by NASA space shuttles, the first in December 1993 and the last in May 2009. Servicing missions were delicate operations that began with maneuvering to intercept the telescope in orbit and carefully retrieving it with the shuttle's mechanical arm. The necessary work was then carried out in multiple tethered spacewalks over a period of four to five days. After a visual inspection of the telescope, astronauts conducted repairs, replaced failed or degraded components, upgraded equipment, and installed new instruments. Once work was completed, the telescope was redeployed, typically after boosting to a higher orbit to address any orbital decay caused by atmospheric drag.
Servicing Mission 1[edit source | edit]
After the problems with Hubble's mirror were discovered, the first servicing mission assumed greater importance, as the astronauts would need to do extensive work to install corrective optics. The seven astronauts for the mission were trained to use about a hundred specialized tools. SM1 flew aboard Endeavour in December 1993, and involved installation of several instruments and other equipment over ten days.
Most importantly, the High Speed Photometer was replaced with the COSTAR corrective optics package, and WFPC was replaced with the Wide Field and Planetary Camera 2 (WFPC2) with an internal optical correction system. The solar arrays and their drive electronics were also replaced, as well as four gyroscopes in the telescope pointing system, two electrical control units and other electrical components, and two magnetometers. The onboard computers were upgraded, and the Hubble's orbit was boosted.
On January 13, 1994, NASA declared the mission a complete success and showed the first sharper images. At the time, the mission was one of the most complex, involving five long extra-vehicular activity periods. Its success was a boon for NASA, as well as for the astronomers with a more capable space telescope.
Servicing Mission 2[edit source | edit]
Servicing Mission 2, flown by Discovery in February 1997, replaced the GHRS and the FOS with the Space Telescope Imaging Spectrograph (STIS) and the Near Infrared Camera and Multi-Object Spectrometer (NICMOS), replaced an Engineering and Science Tape Recorder with a new Solid State Recorder, and repaired thermal insulation. NICMOS contained a heat sink of solid nitrogen to reduce the thermal noise from the instrument, but shortly after it was installed, an unexpected thermal expansion resulted in part of the heat sink coming into contact with an optical baffle. This led to an increased warming rate for the instrument and reduced its original expected lifetime of 4.5 years to about 2 years.
Servicing Mission 3A[edit source | edit]
Servicing Mission 3A, flown by Discovery, took place in December 1999, and was a split-off from Servicing Mission 3 after three of the six onboard gyroscopes had failed. A fourth failed a few weeks before the mission, rendering the telescope incapable of performing scientific observations. The mission replaced all six gyroscopes, replaced a Fine Guidance Sensor and the computer, installed a Voltage/temperature Improvement Kit (VIK) to prevent battery overcharging, and replaced thermal insulation blankets. The new computer is 20 times faster, with six times more memory, than the DF-224 it replaced. It increases throughput by moving some computing tasks from the ground to the spacecraft, and saves money by allowing the use of modern programming languages.
Servicing Mission 3B[edit source | edit]
Servicing Mission 3B flown by Columbia in March 2002 saw the installation of a new instrument, with the FOC (the last original instrument) being replaced by the Advanced Camera for Surveys (ACS). This meant that COSTAR was no longer required, since all new instruments had built-in correction for the main mirror aberration. The mission also revived NICMOS and replaced the solar arrays for the second time, providing 30 percent more power.
Servicing Mission 4[edit source | edit]
Plans called for Hubble to be serviced in February 2005, but the Columbia disaster in 2003, in which Columbia disintegrated on re-entry into the atmosphere, had wide-ranging effects on the Hubble program. NASA Administrator Sean O'Keefe decided that all future shuttle missions had to be able to reach the safe haven of the International Space Station should in-flight problems develop. As no shuttles were capable of reaching both HST and the ISS during the same mission, future manned service missions were canceled. This decision was assailed by numerous astronomers, who felt that Hubble was valuable enough to merit the human risk. HST's planned successor, the James Webb Telescope, is not expected to launch until at least 2018. A gap in space-observing capabilities between a decommissioning of Hubble and the commissioning of a successor is of major concern to many astronomers, given the significant scientific impact of HST. The consideration that JWST will not be located in low Earth orbit, and therefore cannot be easily upgraded or repaired in the event of an early failure, only makes these concerns more acute. On the other hand, many astronomers felt strongly that the servicing of Hubble should not take place if the expense were to come from the JWST budget.
In January 2004, O'Keefe said he would review his decision to cancel the final servicing mission to HST due to public outcry and requests from Congress for NASA to look for a way to save it. The National Academy of Sciences convened an official panel, which recommended in July 2004 that the HST should be preserved despite the apparent risks. Their report urged "NASA should take no actions that would preclude a space shuttle servicing mission to the Hubble Space Telescope". In August 2004, O'Keefe asked Goddard Space Flight Center to prepare a detailed proposal for a robotic service mission. These plans were later canceled, the robotic mission being described as "not feasible". In late 2004, several Congressional members, led by Senator Barbara Mikulski, held public hearings and carried on a fight with much public support (including thousands of letters from school children across the country) to get the Bush Administration and NASA to reconsider the decision to drop plans for a Hubble rescue mission.
The nomination in April 2005 of a new NASA Administrator, Michael D. Griffin, changed the situation, as Griffin stated he would consider a manned servicing mission. Soon after his appointment Griffin authorized Goddard to proceed with preparations for a manned Hubble maintenance flight, saying he would make the final decision after the next two shuttle missions. In October 2006 Griffin gave the final go-ahead, and the 11-day mission by Atlantis was scheduled for October 2008. Hubble's main data-handling unit failed in September 2008, halting all reporting of scientific data until its back-up was brought online on October 25, 2008. Since a failure of the backup unit would leave the HST helpless, the service mission was postponed to incorporate a replacement for the primary unit.
Servicing Mission 4, flown by Atlantis in May 2009, was the last scheduled shuttle mission for HST. SM4 installed the replacement data-handling unit, repaired the ACS and STIS systems, installed improved nickel hydrogen batteries, and replaced other components. SM4 also installed two new observation instruments—Wide Field Camera 3 (WFC3) and the Cosmic Origins Spectrograph (COS)—and the Soft Capture and Rendezvous System, which will enable the future rendezvous, capture, and safe disposal of Hubble by either a crewed or robotic mission. The work accomplished during SM4 is expected to render the telescope fully functioning at least into 2014, and perhaps longer.
Scientific results[edit source | edit]
Key projects[edit source | edit]
In the early 1980s, NASA and STScI convened four panels to discuss Key Projects. These were projects that were both scientifically important and would require significant telescope time, which would be explicitly dedicated to each project. This guaranteed that these particular projects would be completed early, in case the telescope failed sooner than expected. The panels identified three such projects: 1) a study of the nearby intergalactic medium using quasar absorption lines to determine the properties of the intergalactic medium and the gaseous content of galaxies and groups of galaxies; 2) a medium deep survey using the Wide Field Camera to take data whenever one of the other instruments was being used and 3) a project to determine the Hubble Constant within ten percent by reducing the errors, both external and internal, in the calibration of the distance scale.
Important discoveries[edit source | edit]
Hubble has helped resolve some long-standing problems in astronomy, as well as raising new questions. Some results have required new theories to explain them. Among its primary mission targets was to measure distances to Cepheid variable stars more accurately than ever before, and thus constrain the value of the Hubble constant, the measure of the rate at which the universe is expanding, which is also related to its age. Before the launch of HST, estimates of the Hubble constant typically had errors of up to 50%, but Hubble measurements of Cepheid variables in the Virgo Cluster and other distant galaxy clusters provided a measured value with an accuracy of ±10%, which is consistent with other more accurate measurements made since Hubble's launch using other techniques.
While Hubble helped to refine estimates of the age of the universe, it also cast doubt on theories about its future. Astronomers from the High-z Supernova Search Team and the Supernova Cosmology Project used the telescope to observe distant supernovae and uncovered evidence that, far from decelerating under the influence of gravity, the expansion of the universe may in fact be accelerating. This acceleration was later measured more accurately by other ground-based and space-based telescopes, confirming Hubble's finding. The cause of this acceleration remains poorly understood; the most common cause attributed is dark energy.
The high-resolution spectra and images provided by the HST have been especially well-suited to establishing the prevalence of black holes in the nuclei of nearby galaxies. While it had been hypothesized in the early 1960s that black holes would be found at the centers of some galaxies, and work in the 1980s identified a number of good black hole candidates, it fell to work conducted with Hubble to show that black holes are probably common to the centers of all galaxies. The Hubble programs further established that the masses of the nuclear black holes and properties of the galaxies are closely related. The legacy of the Hubble programs on black holes in galaxies is thus to demonstrate a deep connection between galaxies and their central black holes.
The collision of Comet Shoemaker-Levy 9 with Jupiter in 1994 was fortuitously timed for astronomers, coming just a few months after Servicing Mission 1 had restored Hubble's optical performance. Hubble images of the planet were sharper than any taken since the passage of Voyager 2 in 1979, and were crucial in studying the dynamics of the collision of a comet with Jupiter, an event believed to occur once every few centuries.
Other discoveries made with Hubble data include proto-planetary disks (proplyds) in the Orion Nebula; evidence for the presence of extrasolar planets around sun-like stars; and the optical counterparts of the still-mysterious gamma ray bursts. HST has also been used to study objects in the outer reaches of the Solar System, including the dwarf planets Pluto and Eris.

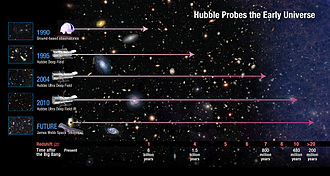

A unique window on the Universe enabled by Hubble are the Hubble Deep Field, Hubble Ultra-Deep Field, and Hubble Extreme Deep Field images, which utilized Hubble's unmatched sensitivity at visible wavelengths to create images of small patches of sky that are the deepest ever obtained at optical wavelengths. The images reveal galaxies billions of light years away, and have generated a wealth of scientific papers, providing a new window on the early Universe. The Wide Field Camera 3 improved the view of these fields in the infrared and ultraviolet, supporting the discovery of some of the most distant objects yet discovered, such as MACS0647-JD.
The non-standard object SCP 06F6 was discovered by the Hubble Space Telescope in February 2006. During June and July 2012, US astronomers using Hubble discovered a tiny fifth moon moving around icy Pluto.
Impact on astronomy[edit source | edit]
Many objective measures show the positive impact of Hubble data on astronomy. Over 9,000 papers based on Hubble data have been published in peer-reviewed journals, and countless more have appeared in conference proceedings. Looking at papers several years after their publication, about one-third of all astronomy papers have no citations, while only 2% of papers based on Hubble data have no citations. On average, a paper based on Hubble data receives about twice as many citations as papers based on non-Hubble data. Of the 200 papers published each year that receive the most citations, about 10% are based on Hubble data.
Although the HST has clearly helped astronomical research, its financial cost has been large. A study on the relative astronomical benefits of different sizes of telescopes found that while papers based on HST data generate 15 times as many citations as a 4 m ground-based telescope such as the William Herschel Telescope, the HST costs about 100 times as much to build and maintain.
Deciding between building ground- versus space-based telescopes is complex. Even before Hubble was launched, specialized ground-based techniques such as aperture masking interferometry had obtained higher-resolution optical and infrared images than Hubble would achieve, though restricted to targets about 108 times brighter than the faintest targets observed by Hubble. Since then, advances in adaptive optics have extended the high-resolution imaging capabilities of ground-based telescopes to the infrared imaging of faint objects. The usefulness of adaptive optics versus HST observations depends strongly on the particular details of the research questions being asked. In the visible bands, adaptive optics can only correct a relatively small field of view, whereas HST can conduct high-resolution optical imaging over a wide field. Only a small fraction of astronomical objects are accessible to high-resolution ground-based imaging; in contrast Hubble can perform high-resolution observations of any part of the night sky, and on objects that are extremely faint.
Usage[edit source | edit]
Anyone can apply for time on the telescope; there are no restrictions on nationality or academic affiliation. Competition for time on the telescope is intense, and only about one-fifth of the proposals submitted in each cycle earn time on the schedule.
Calls for proposals are issued roughly annually, with time allocated for a cycle lasting about one year. Proposals are divided into several categories; 'general observer' proposals are the most common, covering routine observations. 'Snapshot observations' are those in which targets require only 45 minutes or less of telescope time, including overheads such as acquiring the target; snapshot observations are used to fill in gaps in the telescope schedule that cannot be filled by regular GO programs.
Astronomers may make 'Target of Opportunity' proposals, in which observations are scheduled if a transient event covered by the proposal occurs during the scheduling cycle. In addition, up to 10% of the telescope time is designated Director's Discretionary (DD) Time. Astronomers can apply to use DD time at any time of year, and it is typically awarded for study of unexpected transient phenomena such as supernovae.
Other uses of DD time have included the observations that led to the production of the Hubble Deep Field and Hubble Ultra Deep Field, and in the first four cycles of telescope time, observations carried out by amateur astronomers.
Amateur observations[edit source | edit]
The first director of STScI, Riccardo Giacconi, announced in 1986 that he intended to devote some of his Director Discretionary time to allowing amateur astronomers to use the telescope. The total time to be allocated was only a few hours per cycle, but excited great interest among amateur astronomers.
Proposals for amateur time were stringently peer reviewed by a committee of leading amateur astronomers, and time was awarded only to proposals that were deemed to have genuine scientific merit, did not duplicate proposals made by professionals, and required the unique capabilities of the space telescope. In total, 13 amateur astronomers were awarded time on the telescope, with observations being carried out between 1990 and 1997. One such study was Transition Comets – UV Search for OH Emissions in Asteroids. The very first proposal, "A Hubble Space Telescope Study of Post Eclipse Brightening and Albedo Changes on Io", was published in Icarus, a journal devoted to solar system studies. After that time, however, budget reductions at STScI made the support of work by amateur astronomers untenable, and no further amateur programs have been carried out.
20th anniversary[edit source | edit]
The Hubble Telescope celebrated its 20th anniversary in space on April 22, 2010. To commemorate the occasion, NASA, ESA, and Space Telescope Institute (STScI) released an image from the Carina Nebula.
Hubble data[edit source | edit]
Transmission to Earth[edit source | edit]
Hubble data was initially stored on the spacecraft. When launched, the storage facilities were old-fashioned reel-to-reel tape recorders, but these were replaced by solid state data storage facilities during servicing missions 2 and 3A. About twice daily, the Hubble Space Telescope radios data to a satellite in the geosynchronous Tracking and Data Relay Satellite System, which then downlinks the science data to one of two 60-foot (18-meter) diameter high-gain microwave antennas located at the White Sands Test Facility in White Sands, New Mexico. From there they are sent to the Space Telescope Operations Control Center at Goddard Space Flight Center, and finally to the Space Telescope Science Institute for archiving. Each week, HST downlinks approximately 120 gigabytes of data.
Images from Hubble are beamed to Earth in black & white, with each image being captured with red, green, and blue filters. Then these images are combined into one image by a Hubble imaging team, using a "Technicolor process".
Archives[edit source | edit]
All Hubble data is eventually made available via the archives at STScI, CADC and ESA/ESAC. Data is usually proprietary—available only to the principal investigator (PI) and astronomers designated by the PI—for one year after being taken. The PI can apply to the director of the STScI to extend or reduce the proprietary period in some circumstances.
Observations made on Director's Discretionary Time are exempt from the proprietary period, and are released to the public immediately. Calibration data such as flat fields and dark frames are also publicly available straight away. All data in the archive is in the FITS format, which is suitable for astronomical analysis but not for public use. The Hubble Heritage Project processes and releases to the public a small selection of the most striking images in JPEG and TIFF formats.
Pipeline reduction[edit source | edit]
Astronomical data taken with CCDs must undergo several calibration steps before they are suitable for astronomical analysis. STScI has developed sophisticated software that automatically calibrates data when they are requested from the archive using the best calibration files available. This 'on-the-fly' processing means that large data requests can take a day or more to be processed and returned. The process by which data are calibrated automatically is known as 'pipeline reduction', and is increasingly common at major observatories. Astronomers may if they wish retrieve the calibration files themselves and run the pipeline reduction software locally. This may be desirable when calibration files other than those selected automatically need to be used.
Data analysis[edit source | edit]
Hubble data can be analysed using many different packages. STScI maintains the custom-made STSDAS (Space Telescope Science Data Analysis System) software, which contains all the programs needed to run pipeline reduction on raw data files, as well as many other astronomical image processing tools, tailored to the requirements of Hubble data. The software runs as a module of IRAF, a popular astronomical data reduction program.
Outreach activities[edit source | edit]
It has always been important for the Space Telescope to capture the public's imagination, given the considerable contribution of taxpayers to its construction and operational costs. After the difficult early years when the faulty mirror severely dented Hubble's reputation with the public, the first servicing mission allowed its rehabilitation as the corrected optics produced numerous remarkable images.
Several initiatives have helped to keep the public informed about Hubble activities. The Hubble Heritage Project was established to provide the public with high-quality images of the most interesting and striking objects observed. The Heritage team is composed of amateur and professional astronomers, as well as people with backgrounds outside astronomy, and emphasizes the aesthetic nature of Hubble images. The Heritage Project is granted a small amount of time to observe objects which, for scientific reasons, may not have images taken at enough wavelengths to construct a full-color image.
STScI maintains several comprehensive websites for the general public containing Hubble images and information about the observatory. The outreach efforts are coordinated by the Office for Public Outreach, which was established in 2000 to ensure that US taxpayers saw the benefits of their investment in the space telescope program.
Since 1999, the leading Hubble outreach group in Europe has been the Hubble European Space Agency Information Centre (HEIC). This office was established at the Space Telescope - European Coordinating Facility in Munich, Germany. HEIC's mission is to fulfill HST outreach and education tasks for the European Space Agency. The work is centered on the production of news and photo releases that highlight interesting Hubble results and images. These are often European in origin, and so increase awareness of both ESA's Hubble share (15%) and the contribution of European scientists to the observatory. ESA produces educational material, including a videocast series called Hubblecast designed to share world-class scientific news with the public.
There is a replica of the Hubble Telescope on the courthouse lawn in Marshfield, Missouri, the hometown of namesake Edwin P. Hubble.
A small-scale replica of the Hubble Space Telescope in Marshfield, Missouri
The "Twenty Years at the Frontier of Science" exhibition at the Istituto Veneto di Scienze, Lettere ed Arti in Venice, Italy.
Future[edit source | edit]
Equipment failure[edit source | edit]
Past servicing missions have exchanged old instruments for new ones, both avoiding failure and making possible new types of science. Without servicing missions, all of the instruments will eventually fail. In August 2004, the power system of the Space Telescope Imaging Spectrograph (STIS) failed, rendering the instrument inoperable. The electronics had originally been fully redundant, but the first set of electronics failed in May 2001. This power supply was fixed during servicing mission 4 in May 2009. Similarly, the main camera (the ACS) primary electronics failed in June 2006, and the power supply for the backup electronics failed on January 27, 2007. Only the instrument's Solar Blind Channel (SBC) was operable using the side-1 electronics. A new power supply for the wide angle channel was added during SM 4, but quick tests revealed this did not help the high resolution channel.
HST uses gyroscopes to stabilize itself in orbit and point accurately and steadily at astronomical targets. Normally, three gyroscopes are required for operation; observations are still possible with two, but the area of sky that can be viewed would be somewhat restricted, and observations requiring very accurate pointing are more difficult. There are further contingency plans for observations with just one gyro, but if all gyros fail, continued scientific observations will not be possible. In 2005, it was decided to switch to two-gyroscope mode for regular telescope operations as a means of extending the lifetime of the mission. The switch to this mode was made in August 2005, leaving Hubble with two gyroscopes in use, two on backup, and two inoperable. One more gyro failed in 2007. By the time of the final repair mission, during which all six gyros were replaced (with two new pairs and one refurbished pair), only three gyros were still working. Engineers are confident that they have identified the root causes of the gyro failures, and the new models should be much more reliable.
Orbital decay[edit source | edit]
Hubble orbits the Earth in the extremely tenuous upper atmosphere, and over time its orbit decays due to drag. If it is not re-boosted by a shuttle or other means, it will re-enter the Earth's atmosphere sometime between 2019 and 2032, with the exact date depending on how active the Sun is and its impact on the upper atmosphere. If Hubble were to descend in a completely uncontrolled re-entry, parts of the main mirror and its support structure would probably survive, leaving the potential for damage or even human fatalities.
NASA's original plan for safely de-orbiting Hubble was to retrieve it using a space shuttle. The Hubble telescope would then have most likely been displayed in the Smithsonian Institution. This is no longer possible since the space shuttle fleet has been retired, and would have been unlikely in any case due to the cost of the mission and risk to the crew. Instead NASA considered adding an external propulsion module to allow controlled re-entry. Ultimately NASA installed the Soft Capture and Rendezvous System, to enable deorbit by either a crewed or robotic mission.
Successors[edit source | edit]
|Visible spectrum range|
There is no direct successor to the Hubble as an ultraviolet and visible-light space telescope, as near-term space telescopes do not duplicate Hubble's wavelength coverage (near-ultraviolet to near-infrared wavelengths), instead concentrating on the farther infrared bands. These bands are preferred for studying high redshift and low-temperature objects, objects generally older and farther away in the universe. These wavelengths are also difficult or impossible to study from the ground, justifying the expense of a space-based telescope. Large ground-based telescopes can image some of the same wavelengths as Hubble, sometimes challenge HST in terms of resolution (via adaptive optics), have much larger light-gathering power, and can be upgraded more easily, but cannot yet match the Hubble's excellent resolution over a wide field of view with the very dark background of space.
Plans for a Hubble successor materialized as the Next Generation Space Telescope project, which culminated in plans for the James Webb Space Telescope (JWST), the formal successor of Hubble. Very different from a scaled-up Hubble, it is designed to operate colder and farther away from the Earth at the L2 Lagrangian point, where thermal and optical interference from the Earth and Moon are lessened. It is not engineered to be fully serviceable (such as replaceable instruments), but the design includes a docking ring to enable visits from other spacecraft. A main scientific goal of JWST is to observe the most distant objects in the universe, beyond the reach of existing instruments. It is expected to detect stars in the early Universe approximately 280 million years older than stars HST now detects. The telescope is an international collaboration between NASA, the European Space Agency, and the Canadian Space Agency since 1996, and is planned for launch on an Ariane 5 rocket. Although JWST is primarily an infrared instrument, its coverage extends down to 600 nm wavelength light, or roughly orange in the visible spectrum. A typical human eye can see to about 750 nm wavelength light, so there is some overlap with the longest visible wavelength bands, including orange and red light.
A complementary telescope, looking at even longer wavelengths than Hubble or JWST, was the European Space Agency's Herschel Space Observatory, launched on May 14, 2009. Like JWST, Herschel was not designed to be serviced after launch, and had a mirror substantially larger than Hubble's, but observed only in the far infrared and submillimeter. It needed helium coolant, of which it ran out on April 29, 2013.
Further concepts for advanced 21st-century space telescopes include the Advanced Technology Large-Aperture Space Telescope, a conceptualized 8- to 16-meter (320- to 640-inch) optical space telescope that if realized could be a more direct successor to HST, with the ability to observe and photograph astronomical objects in the visible, ultraviolet, and infrared wavelengths, with substantially better resolution than Hubble or the Spitzer Space telescope. This effort is being planned for the 2025–2035 time frame.
|Selected space telescopes & instruments|
|Human eye||—||0.39–0.75 μm||0.01 m|
|Spitzer||2003||3–180 μm||0.85 m|
|Hubble STIS||1997||0.115–1.03 μm||2.4 m|
|Hubble WFC3||2009||0.2–1.7 μm||2.4 m|
|Herschel||2009||55–672 μm||3.5 m|
|JWST||Planned||0.6–28.5 μm||6.5 m|
Existing ground-based telescopes, and various proposed Extremely Large Telescopes, can exceed the HST in terms of sheer light-gathering power and diffraction limit due to larger mirrors, but other factors affect telescopes. In some cases, they may be able to match or beat Hubble in resolution by using adaptive optics (AO). However, AO on large ground-based reflectors will not make Hubble and other space telescopes obsolete. Most AO systems sharpen the view over a very narrow field—Lucky Cam, for example, produces crisp images just 10" to 20" wide, whereas Hubble's cameras are super sharp across a 2½' (150") field. Furthermore, space telescopes can study the heavens across the entire electromagnetic spectrum, most of which is blocked by Earth's atmosphere. Finally, the background sky is darker in space than on the ground, because air absorbs solar energy during the day and then releases it at night, producing a faint—but nevertheless discernible—airglow that washes out low-contrast astronomical objects.
List of Hubble instruments[edit source | edit]
- Advanced Camera for Surveys (ACS)
- Cosmic Origins Spectrograph (COS)
- Corrective Optics Space Telescope Axial Replacement (COSTAR)
- Faint Object Camera (FOC)
- Faint Object Spectrograph (FOS)
- Fine Guidance Sensor (FGS)
- Goddard High Resolution Spectrograph (GHRS/HRS)
- High Speed Photometer (HSP)
- Near Infrared Camera and Multi-Object Spectrometer (NICMOS)
- Space Telescope Imaging Spectrograph (STIS)
- Wide Field and Planetary Camera (WFPC)
- Wide Field and Planetary Camera 2 (WFPC2)
- Wide Field Camera 3 (WFC3)
See also[edit source | edit]
- List of largest optical reflecting telescopes
- KH-11 spy satellite (launched in 1976) from which Hubble is understood to have been derived
Notes[edit source | edit]
- Ryba, Jeanne. "STS-31". NASA. Retrieved March 7, 2012.
- HST Program Office (2003). Hubble Facts: HST Orbit Decay and Shuttle Re-boost (PDF). Goddard Space Flight Center. Retrieved May 12, 2009.
- Kauderer, Amiko (March 26, 2009). "Space Shuttle Mission Overview – STS-125: The Final Visit". NASA. Retrieved May 2, 2009.
- Filmer, Joshua (1 April 2013). "Hubble’s Mission Extended". From Quarks to Quasars. Retrieved 28 July 2013.
- Laidler et al (2005). Synphot User's Guide (PDF). Version 5.00. Baltimore, MD: Space Telescope Science Institute. p. 27. Retrieved November 3, 2012.
- "Hubble Essentials: Quick Facts". The Space Telescope Science Institute. Retrieved July 22, 2013.
- Canright, Shelley. "NASA's Great Observatories". NASA. Retrieved April 26, 2008.
- "Hubble Essentials". STScI. Retrieved November 15, 2012.
- William Harwood (May 30, 2013). "Four years after final service call, Hubble Space Telescope going strong". CBS News. Retrieved June 3, 2013.
- Oberth, Hermann (1923). Die Rakete zu den Planetenräumen. R. Oldenbourg-Verlay.
- Spitzer, Lyman Jr., "Report to Project Rand: Astronomical Advantages of an Extra-Terrestrial Observatory", reprinted in NASA SP-2001-4407: Exploring the Unknown, Chapter 3, Document III-1, p. 546.
- "About Lyman Spitzer, Jr". Caltech. Archived from the original on March 27, 2008. Retrieved April 26, 2008.
- Baum, WA; Johnson, FS; Oberly, JJ; Rockwood, CC; Strain, CV; Tousey, R. (November 1946). "Solar Ultraviolet Spectrum to 88 Kilometers". Phys. Rev (American Physical Society) 70 (9–10): 781–782. Bibcode:1946PhRv...70..781B. doi:10.1103/PhysRev.70.781.
- "The First Orbiting Solar Observatory". heasarc.gsfc.nasa.gov. NASA Goddard Space Flight Center. June 26, 2003. Retrieved September 25, 2011.
- "OAO". NASA. Retrieved April 26, 2008.
- Spitzer, History of the Space Telescope, p. 32.
- Spitzer, History of the Space Telescope, pp. 33–34.
- Spitzer, History of the Space Telescope, p. 34.
- Andersen, Geoff (2007). The telescope: its history, technology, and future. Princeton University Press. p. 116. ISBN 0-691-12979-7.
- "Memorandum of Understanding Between The European Space Agency and The United States National Aeronautics and Space Administration", reprinted in NASA SP-2001-4407: Exploring the Unknown, Chapter 3, Document III-29, p. 671.
- Okolski, Gabriel. "A Chronology of the Hubble Space Telescope". NASA. Retrieved April 26, 2008.
- "The path to the Hubble Space Telescope". NASA. Archived from the original on May 24, 2008. Retrieved April 26, 2008.
- Dunar, pp. 487–488.
- Dunar, p. 489.
- Waldrop, MM (August 17, 1990). "Hubble: The Case of the Single-Point Failure" (PDF). Science Magazine 249 (4970): 735–736. Bibcode:1990Sci...249..735W. doi:10.1126/science.249.4970.735. Retrieved April 26, 2008.
- Robberto, M; Sivaramakrishnan, A; Bacinski; JJ; Calzetti, D; Krist, JE; MacKenty, JW; Piquero, J; Stiavelli, M. (2000). "The Performance of HST as an Infrared Telescope" (PDF). In Breckinridge, James B; Jakobsen, Peter. Proc. SPIE. UV, Optical, and IR Space Telescopes and Instruments 4013: 386–393. doi:10.1117/12.394037.
- Allen, pp. 3–4.
- "Losing Bid Offered 2 Tests on Hubble". The New York Times. Associated Press. July 28, 1990. Retrieved April 26, 2008.
- Goddard Space Flight Center (September 21, 2001). "Hubble Space Telescope Stand-in Gets Starring Role" (Press release). Archived from the original on February 26, 2008. Retrieved April 26, 2008.
- "Backup Mirror, Hubble Space Telescope". National Air and Space Museum. Retrieved November 4, 2012.
- Magdalena Ridge Observatory (1 January 2008). 2.4m Observatory Technical Note. 1.6. p. 2. http://www.mro.nmt.edu/data/2.4m/doc-public/OTN-Overview.pdf. Retrieved January 21, 2013.
- Dunar, p. 496.
- Ghitelman, David (1987). The Space Telescope. New York: Michael Friedman Publishing. p. 32.
- Dunar, p. 504.
- "Hubble Space Telescope Systems". Goddard Space Flight Center. Archived from the original on March 17, 2003. Retrieved April 26, 2008.
- Ghitelman, David (1987). The Space Telescope. New York: Michael Friedman Publishing. p. 50.
- Dunar, p. 508.
- "WFPC2". STScI. Retrieved May 18, 2012.
- Hall, Donald NB (ed) (1982). The Space Telescope Observatory (Technical report CP-2244). NASA. http://hdl.handle.net/2060/19820025420. 40 MB PDF file.
- Brandt, JC, Heap, SR; Beaver, EA; Boggess, A; Carpenter, KG; Ebbets, DC; Hutchings, JB; Jura, M; Leckrone, DS (1994). "The Goddard High Resolution Spectrograph: Instrument, goals, and science results". Publications of the Astronomical Society of the Pacific 106: 890–908. Bibcode:1994PASP..106..890B. doi:10.1086/133457.
- Bless, RC; Walter, LE; White RL (1992). High Speed Photometer Instrument Handbook v 3.0. STSci.
- Benedict, G. Fritz; McArthur, Barbara E. (2005). "High-precision stellar parallaxes from Hubble Space Telescope fine guidance sensors". In DW Kurtz (ed.). Transits of Venus: New Views of the Solar System and Galaxy. IAU Colloquium #196. Cambridge University Press. pp. 333–346.
- "AURA". STScI. Retrieved June 4, 2012.
- "About AURA". AURA. Retrieved November 6, 2012.
- Dunar, pp. 486–487.
- Roman, Nancy Grace. "Exploring the Universe: Space-Based Astronomy and Astrophysics", in NASA SP-2001-4407: Exploring the Unknown (PDF). NASA. Chapter 3, p. 536.
- "Team Hubble". STScI. Retrieved November 6, 2012.
- "HST Call for Proposals", Chapter 4.1.7.
- Tatarewicz, p. 371.
- Wilford, John (April 9, 1990). "Telescope Is Set to Peer at Space and Time". The New York Times. Retrieved January 19, 2009.
- "STS-31". NASA. Retrieved April 26, 2008.
- "James Webb Space Telescope (JWST) Independent Comprehensive Review Panel (ICRP) Final Report" (PDF). NASA. p. 32. Retrieved September 4, 2012.
- Burrows C.J.; Holtzman, JA; Faber, SM; Bely, PY; Hasan, H; Lynda, CR; Schroeder, D (1991). "The imaging performance of the Hubble Space Telescope". Astrophysical Journal Letters 369: L21. Bibcode:1991ApJ...369L..21B. doi:10.1086/185950.
- Heyer, Biretta et al (2004). "WFPC2 Instrument Handbook". 9.0. Baltimore: STScI. Chapter 5.1. Retrieved April 26, 2008.
- "Servicing Mission 1". NASA. Archived from the original on April 20, 2008. Retrieved April 26, 2008.
- Tatarewicz, p. 375.
- "The Naked Gun 2½: The Smell of Fear". Internet Movie Database. Retrieved April 26, 2008.
- Goodwin, Irwin; Cioffi, Denis F. (1994). "Hubble repair improves vision and helps restore NASA's image". Physics Today 47 (3): 42.
- Dunar, pp. 514–515.
- Allen, Chapter VII. The spacing of the field lens in the corrector was to have been done by laser measurements off the end of an invar bar. Instead of illuminating the end of the bar, however, the laser in fact was reflected from a worn spot on a black-anodized metal cap placed over the end of the bar to isolate its center (visible through a hole in the cap). The technician who performed the test noted an unexpected gap between the field lens and its supporting structure in the corrector and filled it in with an ordinary metal washer.
- Dunar, p. 512.
- Allen, p. 10-1.
- Chaisson, Eric (1994). The Hubble Wars; Astrophysics Meets Astropolitics in the Two-Billion-Dollar Struggle Over the Hubble Space Telescope. Harper Collins. ISBN 0-06-017114-6, p. 184.
- Fisher, Arthur (October 1990). "The Trouble with Hubble". Popular Science: 100. Retrieved November 8, 2012.
- Litvac, MM (1991). Image inversion analysis of the HST OTA (Hubble Space Telescope Optical Telescope Assembly), phase A. Final Technical Report. Redondo Beach, CA: TRW Inc. Bibcode 1991trw..rept.....L.
- Redding, David C; Redding, D; Sirlin, S; Boden, A; Mo, J; Hanisch, B; Furey, L (July 1995). "Optical Prescription of the HST". NASA JPL. hdl:2014/31621.
- Allen, Appendix E.
- Tatarewicz, p. 376.
- Jedrzejewski, RI; Hartig, G; Jakobsen, P; Ford, HC (1994). "In-orbit performance of the COSTAR-corrected Faint Object Camera". Astrophysical Journal Letters 435: L7–L10. Bibcode:1994ApJ...435L...7J. doi:10.1086/187581.
- "HST". STScI. Corrective Optics Space Telescope Axial Replacement. Retrieved November 4, 2012.
- "Hubble Essentials". STScI. Retrieved November 8, 2012.
- Tatarewicz, pp. 384–387.
- Trauger, J.T. et al. (1994). "The on-orbit performance of WFPC2". Astrophysical Journal Letters 435: L3–L6. Bibcode:1994ApJ...435L...3T. doi:10.1086/187580.
- "Servicing Mission 2". NASA. Archived from the original on April 19, 2008. Retrieved April 26, 2008.
- "NICMOS Thermal History". STScI. Retrieved April 26, 2008.
- "Servicing Mission 3A Overview". NASA. Retrieved April 26, 2008.
- Lockheed Martin Missiles and Space (PDF). Hubble Space Telescope Servicing Mission 3A Media Reference Guide. NASA. pp. 5–9 and Section 7.1.1. http://hubble.nasa.gov/a_pdf/news/SM3A-MediaGuide.pdf. Retrieved April 27, 2008.
- "Servicing Mission 3". NASA. Archived from the original on April 7, 2008. Retrieved April 26, 2008.
- "Servicing Mission 4 Cancelled". STScI. January 16, 2004. Retrieved April 28, 2008.
- "Assessment of Options for Extending the Life of the Hubble Space Telescope: Final Report". The National Academies. 2005. Chapter 7, "Given the intrinsic value of a serviced Hubble, and the high likelihood of success for a shuttle servicing mission, the committee judges that such a mission is worth the risk."
- "2004 Annual Report" (PDF). Astronomy and Astrophysics Advisory Committee. March 15, 2004. Section 3.1 – The Scientific Impact of the HST SM4 Cancellation. Retrieved November 5, 2012.
- Warren E. Leary (July 14, 2004). "Panel Urges NASA to Save Hubble Space Telescope". The New York Times. Retrieved November 8, 2012.
- Gugliotta, Guy (April 12, 2005). "Nominee Backs a Review Of NASA's Hubble Decision". The Washington Post. Retrieved January 10, 2007.
- "Mikulski Vows To Fight For Hubble" (Press release). Barbara Mikulski. February 7, 2005. Retrieved April 26, 2008.
- Boyle, Alan (October 31, 2006). "NASA gives green light to Hubble rescue". MSNBC. Retrieved January 10, 2007.
- Cowen, Ron (September 29, 2008). "Hubble suddenly quiet". ScienceNews. Retrieved November 8, 2012.
- Courtland, Rachel (October 28, 2008). "Hubble re-opens an eye". New Scientist. Retrieved October 29, 2008.
- "NASA Sets Target Shuttle Launch Date for Hubble Servicing Mission". NASA. December 4, 2008. Retrieved December 5, 2008.
- "Hubble Opens New Eyes on the Universe". NASA. September 9, 2009. Retrieved May 28, 2012.
- "The Soft Capture and Rendezvous System". NASA. Retrieved May 20, 2009.
- Bahcall, JN; Bergeron, J; Boksenberg, A; Hartig, GF; Jannuzi, BT; Kirhakos, S; Sargent, WLW; Savage, BD et al. (1993). "The Hubble Space Telescope Quasar Absorption Line Key Project. I. First Observational Results, Including Lyman-Alpha and Lyman-Limit Systems". The Astrophysical Journal Supplement Series 87: 1–43. Bibcode:1993ApJS...87....1B. doi:10.1086/191797. ISSN 0067-0049.
- Ostrander, EJ; Nichol, RC; Ratnatunga, KU; Griffiths, RE (1998). "The Hubble Space Telescope Medium Deep Survey Cluster Sample: Methodology and Data". The Astronomical Journal 116 (6): 2644. arXiv:astro-ph/9808304. Bibcode:1998AJ....116.2644O. doi:10.1086/300627.
- Huchra, John. "The Hubble Constant". Retrieved January 11, 2011.
- Freedman, WL; Madore, BF; Gibson, BK; Ferrarese, L; Kelson, DD; Sakai, S; Mould, JR; Kennicutt, RC Jr et al (2001). "Final Results from the Hubble Space Telescope Key Project to Measure the Hubble Constant". The The Astrophysical Journal 553 (1): 47–72. arXiv:astro-ph/0012376. Bibcode:2001ApJ...553...47F. doi:10.1086/320638. Preprint available here.
- Clifton, Timothy; Ferreira, Pedro G (March 23, 2009). "Does Dark Energy Really Exist?". Scientific American. Retrieved June 16, 2009.
- Seife, Charles (June 20, 2003). "Dark Energy Tiptoes Toward the Spotlight". Science 300 (5627): 1896–1897. doi:10.1126/science.300.5627.1896. PMID 12817137.
- "Hubble Confirms Existence of Massive Black Hole at Heart of Active Galaxy". Goddard Space Flight Center. May 25, 1994. Retrieved April 26, 2008.
- Gebhardt, K; Bender, R; Bower, G; Dressler, A; Faber, SM; Filippenko, AV; Green, R; Grillmair, C; Ho, LC; Kormendy, J et al (2000). "A Relationship between Nuclear Black Hole Mass and Galaxy Velocity Dispersion". The Astrophysical Journal 539 (1): L13–L16. arXiv:astro-ph/0006289. Bibcode:2000ApJ...539L..13G. doi:10.1086/312840.
- Ferrarese, Laura; Merritt, David (2000). "A Fundamental Relationship between Supermassive Black Holes and their Host Galaxies". The Astrophysical Journal 539 (1): L9–L12. arXiv:astro-ph/0006053. Bibcode:2000ApJ...539L...9F. doi:10.1086/312838.
- "Hubble Confirms Abundance of Protoplanetary Disks around Newborn Stars". STScI. June 13, 1994. Retrieved April 26, 2008.
- "Hubble Finds Extrasolar Planets Far Across Galaxy". NASA. October 4, 2006. Retrieved April 26, 2008.
- "Autopsy of an Explosion". NASA. March 26, 1999. Retrieved April 26, 2008.
- "APOD: March 11, 1996 – Hubble Telescope Maps Pluto". NASA. Retrieved April 26, 2008.
- "Astronomers Measure Mass of Largest Dwarf Planet" (Press release). STScI. June 14, 2007. Retrieved April 26, 2008.
- Brumfiel, Geoff (September 19, 2008). "How they wonder what you are". Nature. Retrieved November 4, 2012.
- Gänsicke, BT; Levan, AJ; Marsh, TR; Wheatley, PJ (2009). "SCP06F6: A carbon-rich extragalactic transient at redshift z~0.14?". The Astrophysical Journal 697 (1): L129–L132. arXiv:0809.2562. Bibcode:2009ApJ...697L.129G. doi:10.1088/0004-637X/697/2/L129.
- "Hubble discovers fifth and tiniest Pluto moon". The Indian Express. July 12, 2012.
- "HST Publication Statistics". STScI. Retrieved September 9, 2009.
- STScI Newsletter 20 (2). Spring 2003.
- Benn, CR; Sánchez, SF (2001). "Scientific Impact of Large Telescopes". Publications of the Astronomical Society of the Pacific 113 (781): 385. arXiv:astro-ph/0010304. Bibcode:2001PASP..113..385B. doi:10.1086/319325.. arXiv preprint.
- Haniff, CA; Mackay, CD; Titterington, DJ; Sivia, D; Baldwin, JE, (August 1987). "The first images from optical aperture synthesis". Nature 328 (6132): 694. Bibcode:1987Natur.328..694H. doi:10.1038/328694a0.
- Buscher, DF; Baldwin, JE; Warner, PJ; Haniff, CA; Baldwin; Warner; Haniff (July 1990). "Detection of a bright feature on the surface of Betelgeuse". Monthly Notices Royal Astronomical Society 245: 7. Bibcode:1990MNRAS.245P...7B.
- "HST Call for Proposals", Chapter 2.3.
- "HST Overview". NASA. June 21, 2010. Mission Operations and Observations. Retrieved November 4, 2012.
- "Team Hubble". STScI. Retrieved November 5, 2012. "Each year more than 1,000 proposals are reviewed and approximately 200 are selected."
- "HST Call for Proposals", Chapter 2.3.
- "HST Call for Proposals", Chapter 3.8.
- "Amateur Astronomers Will Use NASA's Hubble Space Telescope". STScI. September 10, 1992. Retrieved April 26, 2008.
- Secosky J; Potter M (1994). "A Hubble Space Telescope Study of Posteclipse Brightening and Albedo Changes on Io". Icarus 111: 73–78. Bibcode:1994Icar..111...73S. doi:10.1006/icar.1994.1134.
- O'Meara, Stephen J (June 1997). "The Demise of the HST Amateur Program". Sky and Telescope 96 (6): 97. Bibcode: 1997S&T....93f..97O.
- STScI (April 22, 2010). "Starry-Eyed Hubble Celebrates 20 Years of Awe and Discovery" (Press release). Retrieved November 4, 2012.
- "Team Hubble". STScI. Data Management. Retrieved November 5, 2012.
- "JPL Horizons Object Data Page, Hubble Space Telescope". JPL.
- Rosen, Raphael. "The Secret Science of the Hubble Space Telescope's Amazing Images". Space.com. Retrieved July 26, 2013.
- "The Hubble Telescope". STScI. Retrieved April 26, 2008.
- "CADC's Hubble Space Telescope Archive". CADC. Retrieved April 26, 2008.
- "European HST Archive at ESA/ESAC". ESA/ESAC. Retrieved February 14, 2013.
- "HST Call for Proposals", Chapter 5.1.
- "HST Primer for Cycle 20", Chapter 7.2.
- "The Hubble Heritage Project". STScI. Retrieved November 5, 2012.
- "HST Primer", Chapter 7.1.
- "HST Primer", Chapter 7.1.1.
- "National Aeronautics and Space Administration 2003 Strategic Plan" (PDF). NASA. Retrieved November 5, 2012.
- "HubbleSite". STScI. Retrieved April 26, 2008.
- "NewsCenter". STScI. Retrieved April 26, 2008.
- "News Release Archive: Entire Collection". STScI. Retrieved April 26, 2008.
- "Hubble Public Talks". STScI. Retrieved April 26, 2008.
- "The European Homepage For The NASA/ESA Hubble Space Telescope". ESA. Retrieved April 26, 2008.
- "Historic Hubble Space Telescope Repair Mission Team Honored by the Space Foundation with 2010 Space Achievement Award" (Press release). 26th National Space Symposium. March 29, 2010. Retrieved November 5, 2012.
- "Space Telescope Imaging Spectrograph". STScI. Retrieved April 26, 2008.
- "Engineers Investigate Issue on One of Hubble's Science Instruments". NASA. January 29, 2007. Retrieved April 26, 2008.
- "Advanced Camera for Surveys". STScI. Retrieved May 21, 2009.
- Sembach, KR, et al. (2004). HST Two-Gyro Handbook. Version 1.0. Baltimore: STScI.
- "NASA Hubble Space Telescope Daily Report # 4537". SpaceRef. January 31, 2008. Retrieved January 6, 2009.
- "NASA/ESA Hubble Space Telescope Begins Two-Gyro Science Operations". SpaceRef. September 1, 2005. Retrieved January 9, 2009.
- Hecht, Jeff (September 6, 2007). "Hubble telescope loses another gyroscope". New Scientist. Retrieved January 6, 2009.
- "Gyroscopes". ESA. Retrieved June 9, 2012.
- Harwood, William (October 30, 2008). "Endeavour to go Nov. 14; Hubble slips deeper into '09". Spaceflight Now. Retrieved January 6, 2009.
- Whitehouse, Dr. David (January 17, 2004). "Why Hubble is being dropped". BBC News. Retrieved January 10, 2007.
- Cowing, Keith (July 22, 2005). "NASA Considering Deletion of Hubble Deorbit Module". SpaceRef. Retrieved January 10, 2007.
- Matson, John (May 8, 2009). "Last Dance with the Shuttle: What's in Store for the Final Hubble Servicing Mission". Scientific American. Retrieved May 18, 2009.
- Berger, Brian (May 23, 2007). "NASA Adds Docking Capability For Next Space Observatory". Space.com. Retrieved June 4, 2012.
- "NASA's Hubble Finds Most Distant Galaxy Candidate Ever Seen in Universe" (Press release). NASA. January 26, 2011. Retrieved June 4, 2012. Visual representation.
- "ESA JWST Timeline". Sci.esa.int. June 30, 2003. Retrieved June 4, 2012.
- "About Webb's Launch". NASA. Retrieved November 4, 2006.
- "What Will Astronomy Be Like in 35 Years?". Astronomy. August 2008.
- "JPL: Herschel Space Observatory: Related Missions". Herschel.jpl.nasa.gov. Retrieved June 4, 2012.
- Fienberg, Rick (September 14, 2007). "Sharpening the 200-Inch". Sky and Telescope. Retrieved July 1, 2008.
References[edit source | edit]
- "HST Call for Proposals for Cycle 20" (PDF). STScI. December 2011. Retrieved November 8, 2012.
- "HST Primer for Cycle 20" (PDF). STScI. December 2011. Retrieved November 6, 2012.
- Allen, Lew (1990). "The Hubble Space Telescope Optical Systems Failure Report" (PDF). NASA Technical Report NASA-TM-103443. The definitive report on the error in the Hubble mirror.
- Dunar, A. J.; S. P. Waring (1999). Power to Explore: History of Marshall Space Flight Center 1960–1990. U.S. Government Printing Office. ISBN 0-16-058992-4. Chapter 12, PDF (260 KB). Covers the development of the telescope.
- Logsdon, John M.; Amy Paige Snyder, Roger D. Launius, Stephen J. Garber, and Regan Anne Newport (eds.). NASA SP-2001-4407: Exploring the Unknown: Selected Documents in the History of the U.S. Civil Space Program. Volume V: Exploring the Cosmos (PDF). NASA. Contains many of the primary documents such as Spitzer's 1946 article, the Wood's Hole report on STScI autonomy, and the ESA memorandum of understanding. Also includes other NASA astronomy programs.
- Spitzer, Lyman S (1979). "History of the Space Telescope". Quarterly Journal of the Royal Astronomical Society 20: 29–36. Bibcode:1979QJRAS..20...29S. Covers the early history of precursors and proposals.
- Tatarewicz, Joseph N. "Chapter 16: The Hubble Space Telescope Servicing Mission". From Engineering Science to Big Science. NASA. SP-4219. A detailed account of the first servicing mission.
Further reading[edit source | edit]
- "The transition from Hubble to JWST" (PDF). HST-JWST Transition Panel. August 2003.
- Pearce, Rohan. "What went wrong with the Hubble Space Telescope (and what managers can learn from it)". Techworld. Retrieved March 30, 2012.
- Zimmerman, Robert F. (2010). The Universe in a Mirror: The Saga of the Hubble Space Telescope and the Visionaries Who Built It. Princeton University Press. ISBN 978-0691146355.
[edit source | edit]
|Wikimedia Commons has media related to: Hubble Space Telescope|
- Hubble at NASA
- HubbleSite, Space Telescope Science Institute's Hubble pages
- Hubble Heritage Project, including a gallery of famous HST pictures
- Spacetelescope, ESA's public Hubble pages, including Hubblecast
- Hubble data archive at STScI
- Hubble data archive at ESA/ESAC
- Hubble data archive at CADC
- Hubble's current position
- "Hubble's first 20 years", video slideshow with Professor Alec Boksenberg from the Institute of Astronomy in Cambridge
- Gray, Megan. "Hubble Space Telescope". Deep Sky Videos. Brady Haran.
